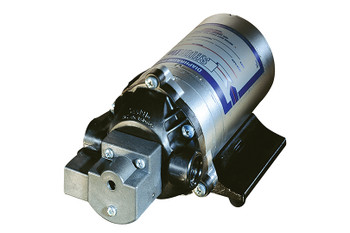

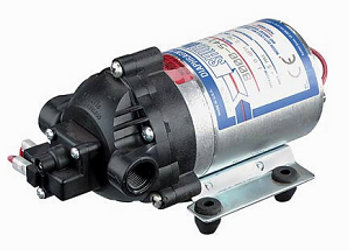

SHURflo 8005-243-256 Diaphragm 8000 Series Delivery Pumps 12 VDC, 1.3 GPM, 3/8" NPT Female Ports, 60 PSI

SKU:
8005-243-256
Condition:
New
Weight:
4.50 LBS
Shipping:
Calculated at Checkout

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 - 5 and get 6.00CAD off
Buy 6 or above and get 12.00CAD off
  • SHURflo 8005-243-256 Diaphragm 8000 Series Delivery Pumps 12 VDC, 1.3 GPM, 3/8" NPT Female Ports, 60 PSI
  • SHURflo 8005-243-256 Diaphragm 8000 Series Delivery Pumps 12 VDC, 1.3 GPM, 3/8" NPT Female Ports, 60 PSI
167.55CAD

Description

PRODUCT DOCUMENTATION

SHURFLO 8005-243-256 Delivery Pump Spec Sheet

 FEATURES & BENEFITS

  • Great for water boost systems, misters and sprayers
  • Self-priming
  • Can run dry without damage
  • Flow rates up to 1.8 GPM [5.7 LPM]
  • Pressures up to 150 PSI [10.3 BAR] available
  • Corded pump: UL-listed; non-corded pump: UL-recognized
  • Built-in check valve
  • 12, 24 or 115 Voltage

SPECIFICATION

  • Model Number: 8005-243-256
  • Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
  • Cam: 3.0 Degree
  • Motor: Permanent Magnet, Thermally Protected
  • Voltage:12 VDC Nominal
  • Pressure Switch: Adjustable Shut-Off (Range 40-60 PSI) Factory Set @ 60 PSI,
  • Max. Liquid Temperature: 180 Degrees Fahrenheit (82 Degrees Centigrade)
  • Prime: Self-Priming Up To 14.0 Ft. Vertical,
  • Max. Inlet Pressure 30 PSI (2.1 Bar)
  • Ports: 3/8"NPT Female
  • Material of Condtruction: Plastics-Polypropylene
  • Valves: EPDM
  • Diaphragm:Santoprene
  • By Pass 45 PSI
  • NSF Listed

APPLICATION

  • Water Delivery
