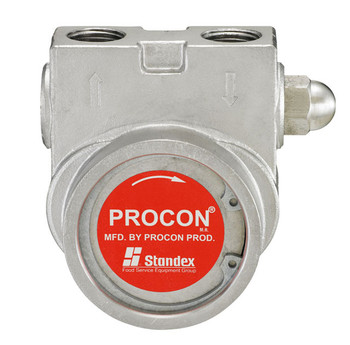

Procon Series-5, Stainless Steel Pump 240 GPH 1/2" NPT Relief Valve Set @ 170 PSI (115B240F31BA170)

PRODUCT DOCUMENTATION

• Procon Series 5 Pump Specification
• Procon Pump Installation Manual
• Procon Pump Suggested Piping
• Procon Pump Safe Usage
• Procon Pump Troubleshooting
• Procon Pump Series 5 Drawing

SPECIFICATION

• Part Number: 115B240F31BA170
• Body Material: Type 303 Stainless Steel
• Capacity: 240 GPH
• Port Size: 1/2” NPT (inlet and outlet)
• Relief Valve Pressure Setting: 170 PSI
• Nominal Speed: 1725 RPM
• Typical Horsepower Required: 0.25-1.50 HP
• Maximum Discharge Pressure:250 PSI
• Self-Priming (water): 6 ft. (maximum lift)
• Mounting Style: Bolt-On with Single Flat Drive
• Compatible with 48YZ frame and 56C frame motors
• Low vibration and pulsation characteristics
• Food Grade NSF Certify
