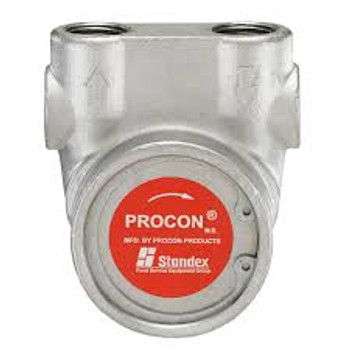

Procon Series-3, Stainless Steel Pump 70 GPH 3/8" NPT w/o Relief (113A070F31XX)

DISCONTINUED!!

PRODUCT DOCUMENTATION

• Procon Series 3 Pump Specification
• Procon Pump Installation Manual
• Procon Pump Suggested Piping
• Procon Pump Safe Usage
• Procon Pump Troubleshooting
• Procon Pump Series 3 Drawing

SPECIFICATION

• Part Number: 113A070F31XX
• Body Material: Type 303 Stainless Steel
• Capacity: 70 GPH
• Port Size: 3/8” NPT (inlet and outlet)
• No Relief Valve
• Nominal Speed: 1725 RPM
• Typical Horsepower Required: 0.25-0.50 HP
• Maximum Discharge Pressure:250 PSI
• Self-Priming (water): 6 ft. (maximum lift)
• Mounting Style: Clamp-On
• Compatible with 48YZ frame and 56C frame motors
• Low vibration and pulsation characteristics
• Food Grade NSF Certify
