Pentek 158616 3/8" #10 3G Slim Line Blue/Clear Quick Change with Mounting Bracket Cap w/o Pressure Relief

DISCONTINUED!!

PRODUCT DOCUMENTATION

Pentek 3G Slim Line Filter Housing Spec Sheet

 FEATURES & BENEFITS

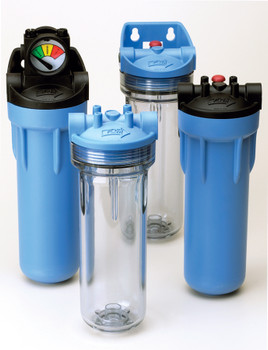

• 10" housings available with clear or opaque sump
• Buttress threads for additional strength and easier cartridge changes
• John Guest and NPT threaded connections offered in 1/4", 3/8", and 1/2"
• Cap styles include mounting bracket, integral bracket, meter mount and optional pressure relief bleed valve
• Housing accepts DOE (double open end) cartridges
• Leak-proof seal
• Pressure relief button helps reduce pressure in housing when changing cartridges

SPECIFICATION

• Part Number: 158616
• Ports: 3/8" Quick Change
• Blue Cap
• Clear Sump
• Housing – Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap – Reinforced polypropylene
• O-Ring – #237 Buna-N
• Temperature Rating- 40-125o F (4.4-51.7o C)
• Maximum Pressure- 125 psi (8.6 bar)
• Case Quantity: 12 Pieces (Pricing is per piece)
