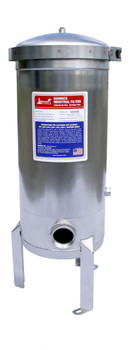

BC6-2 Harmsco Stainless Steel Band Clamp Filter Housing 84 GPM 2"

SKU:
BC6-2
Condition:
New
Weight:
53.00 LBS
Shipping:
Calculated at Checkout
2,069.11USD

Description

Product Documentation:

Overview:

  • Up-Flow Filtration - A design so superior it's patented which prevents the accumulation of air inside the filter housing keeping the filter operating at 100%.

Features:

  • 304 stainless steel construction, standard
  • Integral mounting legs, drill in place
  • 150 psi (10.3 bar) pressure rating
  • Stainless steel cartridge lifters for easy cartridge removal
  • Electropolished finish, standard
  • Adjustable top plates to accept various length cartridges
  • Two drains provided - inlet and outlet fluids
  • Flow rates up to 84 gpm
  • All filter housings hydrostatically tested

Options:

  • 316 stainless steel
  • Sanitary, BSTP or victaulic connections

Applications:

  • Commercial/Residential Drinking Water
  • Cooling tower filtration
  • Ground Water Under Direct Influence (GUDI)
  • Process Water
  • Reverse Osmosis Pre-filtration
  • Utility Water
  • Cooling tower filtration
  • Ground water remediation

Filter Specifications:

  • Finish - Electropolish standard
  • Inlet / Outlet - 2” FNPT; Sanitary connections optional
  • Closure - Band clamp closure, O-rings Buna-N
  • Pressure - Up to 150 psi (10.3 bar) max
  • Construction - 304 stainless steel standard; 316 optional
  • Temperature - up to 250°F(121°C), housing only
  • BC6-2 housing uses 6 2.75" x 19.5" or 20" Cartridges
