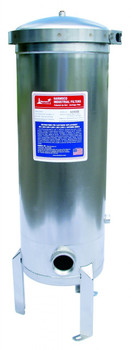

BC4-2 Harmsco Stainless Steel Band Clamp Filter Housing 50 GPM 2"

DISCONTINUED!!

Product Documentation:

• Harmsco BC4 Series Band Clamp Housing Specifications
• Harmsco BC4 Series Band Clamp Housing Insallation and Operation Manual
• Harmsco BC4-2 Installation Diagram

Overview:

• Up-Flow Filtration - A design so superior it's patented which prevents the accumulation of air inside the filter housing keeping the filter operating at 100%.

Features:

• 304 stainless steel construction, standard
• Integral mounting legs, drill in place
• 150 psi (10.3 bar) pressure rating
• Stainless steel cartridge lifters for easy cartridge removal
• Electropolished finish, standard
• Adjustable top plates to accept various length cartridges
• Two drains provided - inlet and outlet fluids
• Flow rates up to 50 gpm
• All filter housings hydrostatically tested

Options:

• 316 stainless steel
• Sanitary, BSTP or victaulic connections

Applications:

• Commercial/Residential Drinking Water
• Cooling tower filtration
• Ground Water Under Direct Influence (GUDI)
• Process Water
• Reverse Osmosis Pre-filtration
• Utility Water
• Cooling tower filtration
• Ground water remediation

Filter Specifications:

• Finish - Electropolish standard
• Inlet / Outlet - 2” FNPT; Sanitary connections optional
• Closure - Band clamp closure, O-rings Buna-N
• Pressure - Up to 150 psi (10.3 bar) max
• Construction - 304 stainless steel standard; 316 optional
• Temperature - up to 250°F(121°C), housing only
• BC4-2 housing uses 4 2.75" x 19.5" or 20" Cartridges
